Normal Speed: 8000 cups/hour
Dimension: 1600mm(L)×800mm(W)×2200mm(H)
Power Supply: 380V AC/50Hz
Power: 1.5kw
Compressed Air Pressure: 0.4-1.0mpa
Compressed Air Consumption: 15L/min
Net Weight: 300kg

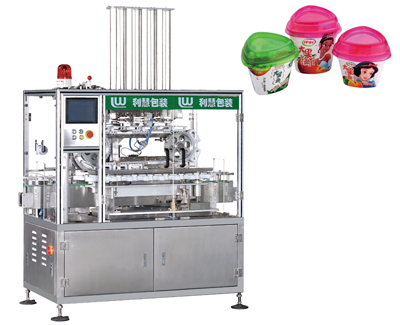

2、JGS-2H High Speed Cap Applicatort:
The main difference between JGS-2H and JGS-2 is the structure of barn to meet the requirements of high speed feeding utensils.
Technical Specification:
Normal Speed: 12000(cups/hour)
Dimension: 2680mm(L)x950mm(W)x2200mm(H)
Power Supply: 380V AC,50Hz
Power: 7.5Kw
Compressed Air Pressure: 0.4~1.0Mpa
Compressed Air Consumption: 15L/min
Net Weight: 740Kg
Cup type: 65~115mm round, triangular, height65~115mm
Cover type: 10~35mm round, triangular, height 10 ~ 35mm
