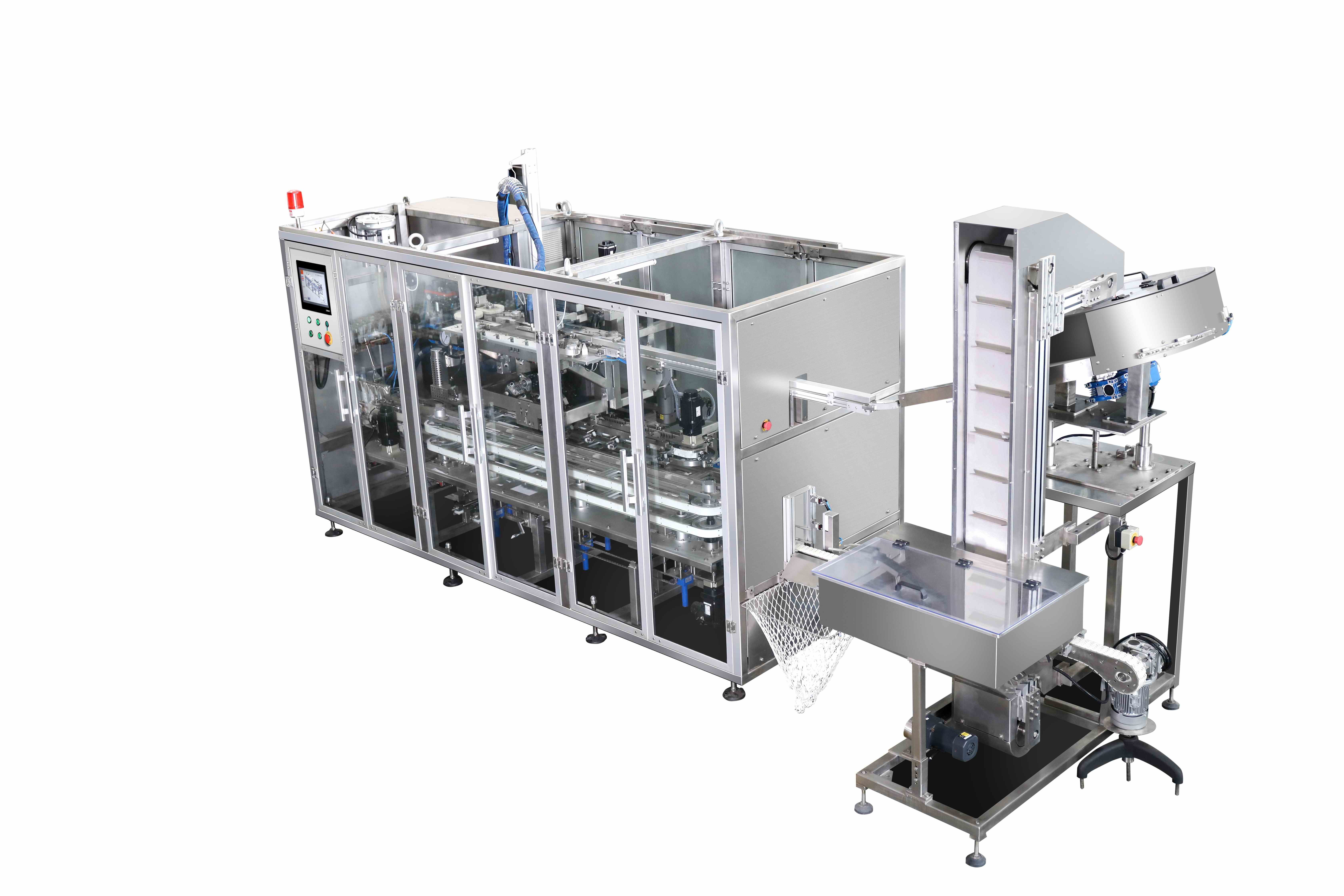

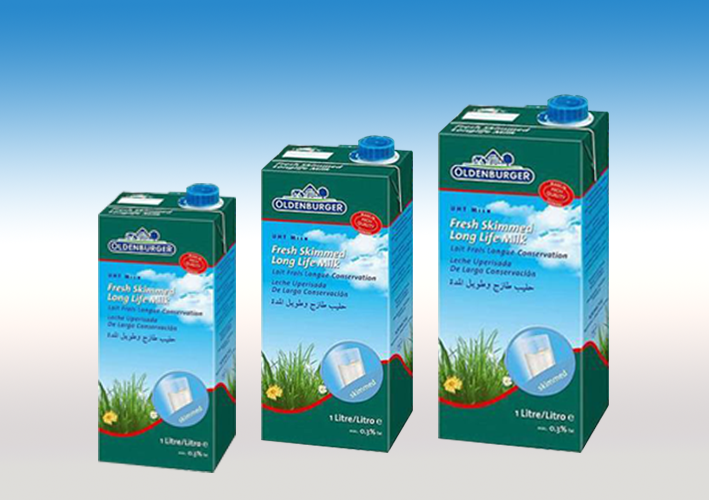

TG1 Cap Applicator used for pasting cap on the packages. Rotary disk sorting mechanism, glue and cap feeding system adopt cam and servo drive system, continuous, high-speed paste.
TG1 Cap Applicator adopts motion controller so as to ensure the smooth and high-speed running, The modular design makes the package type switching is more simple and fast.
The high speed. high precision. high stability can save a lot of manpower cost and maintenance cost for customers.
Technical Specification:
Product Capacity: 6000~900 packs/hour
Dimension: 4470 mm (L) x1990 mm (W) x2460 mm (H)
Power Supply: 380VAC/50Hz
Power: Total 60KW, Production consumption ≤15KW
|
