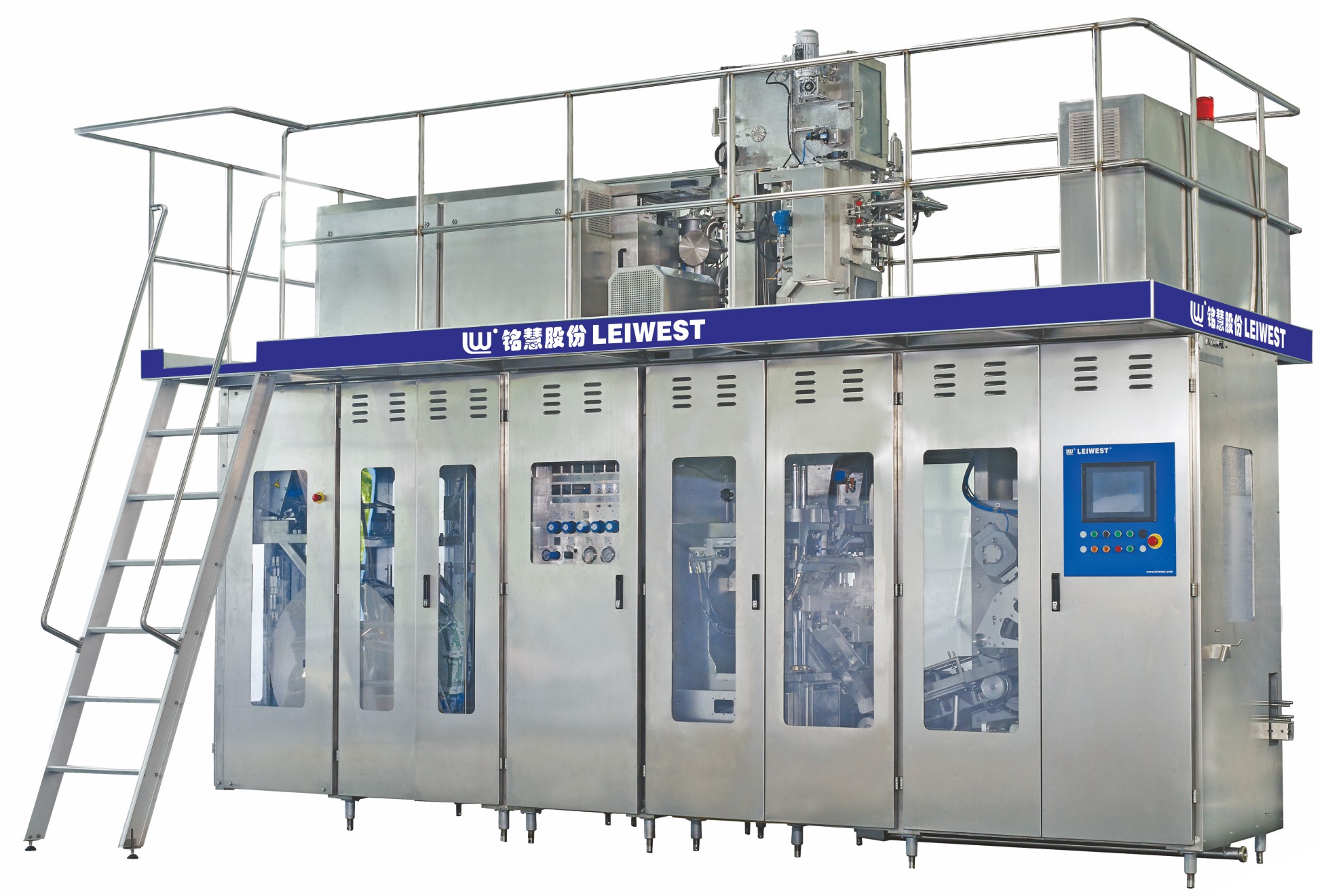

LWG2A aseptic filling machine is based on LWG2C model but adopting turntable final folder. It can produce brick packages and prisma packages with a capacity of less than or equal to 330ml.
System Characteristic:
Sinking packing material feed mode, LWPAS-2 paper automatic splicer, LWSAS-2 PPP strip automatic splicer, SA and LS IH heater, LWAS-3 sterile system, LWCS-2 design correction unit, LWFS-2 filling system, LWOP intelligent controller, Turntable final folder.
According to the Shapes of Packing:
330D(330ml-Diamond)、330S(330ml-Slim)、250B(250ml-Base)、
250D(250ml-Diamond)、250S(250ml-Slim)、200B(200ml-Base)、
200D(200ml-Diamond)、200S(200ml-Slim)、100B(100ml-Base)
200M(200ml-Middle)、 125S(125ml-Slim).
Technical Specification:
Product Capacity: 7500 packs/hour
Dimension: 5212mm(L)×2895mm(W)×3660mm(H)
Power Supply: 380VAC/50Hz
Power: 45Kw
Compressed Air Pressure:0.6~1.0Mpa
Water Pressure: 0.45Mpa
Steam Pressure: 170±30kpa(1.7±0.3bar)
|
