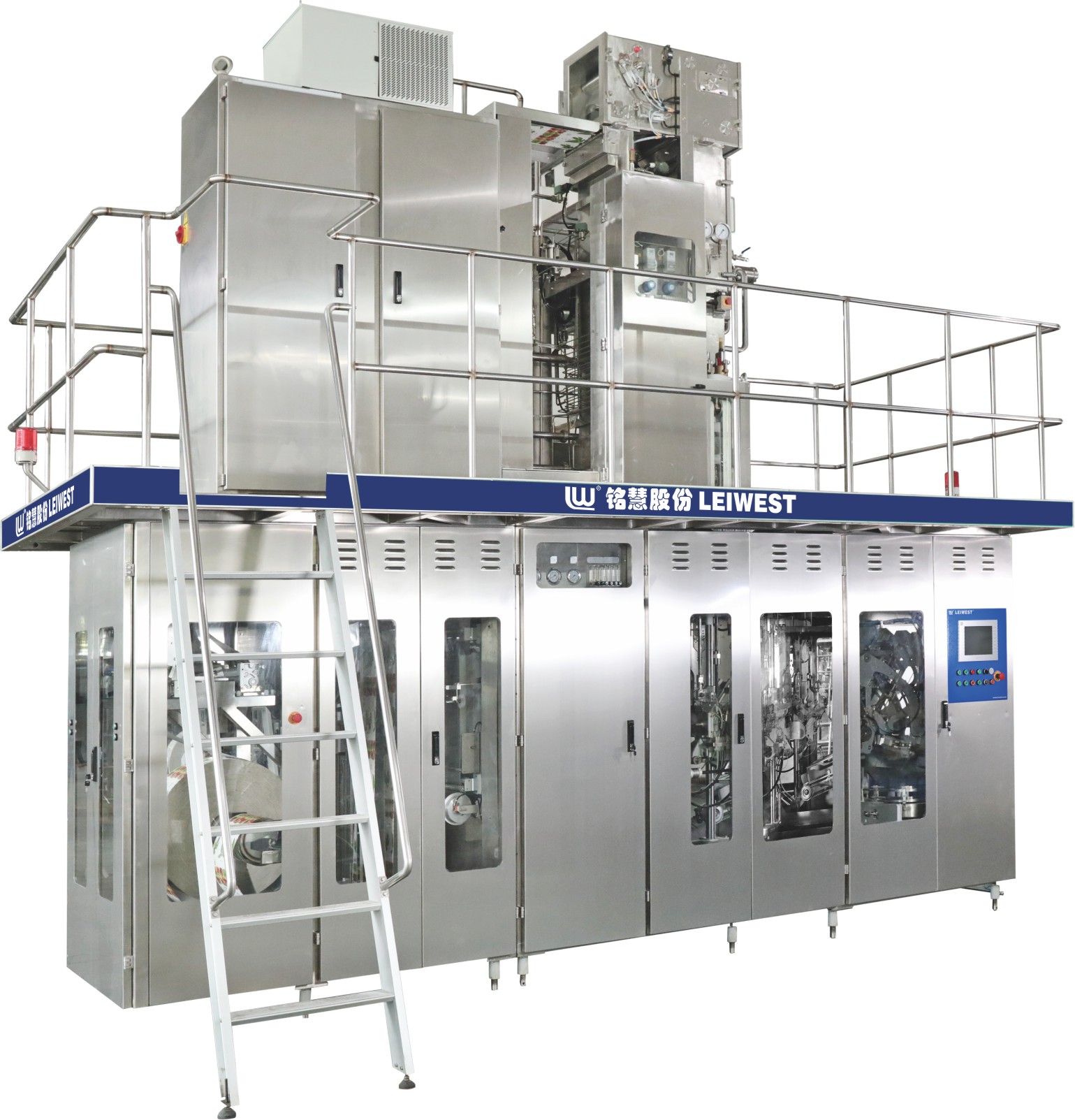

LWG6F flexible aseptic filling machine adopt flexible design, quick change package type, 30 minutes can replace the same section of different capacity package type.One working day can replace the different section of different capacity package type.

1. Fully servo drive without cam, reduce a large number of spare parts, decrease maintenance costs and maintenance is very easy.

2. Sinking packing material feed mode.

3. LWPAS-2 paper automatic splicer.

4. LWSAS-2 PPP strip automatic splicer.

According to the final product:

LWG6F：(>330ml) filling machine is used for milk, juice, beverage, etc.

LWG6FY：(>330ml) filling machine is used for edible oil and condiment products.

According to the shapes of packing：

500B（500ml-Base）、500S（500ml-Slim）、1000D（1000ml-Diamond)、

1000B(1000ml-Base）、1000S(1000ml-Slim)、1000SQ（1000ml-Sqare）、

Technical Specification：

Product Capacity：               6000 packs/hour

 Dimension：                        5610mm(L)×2960mm(W)×4880mm(H)

Power Supply：                    380VAC/50Hz

Power：                                60Kw

Compressed Air Pressure：    0.6～1.0Mpa

Water Pressure：                   0.45Mpa

Steam Pressure：                  170±30kpa(1.7±0.3bar)
