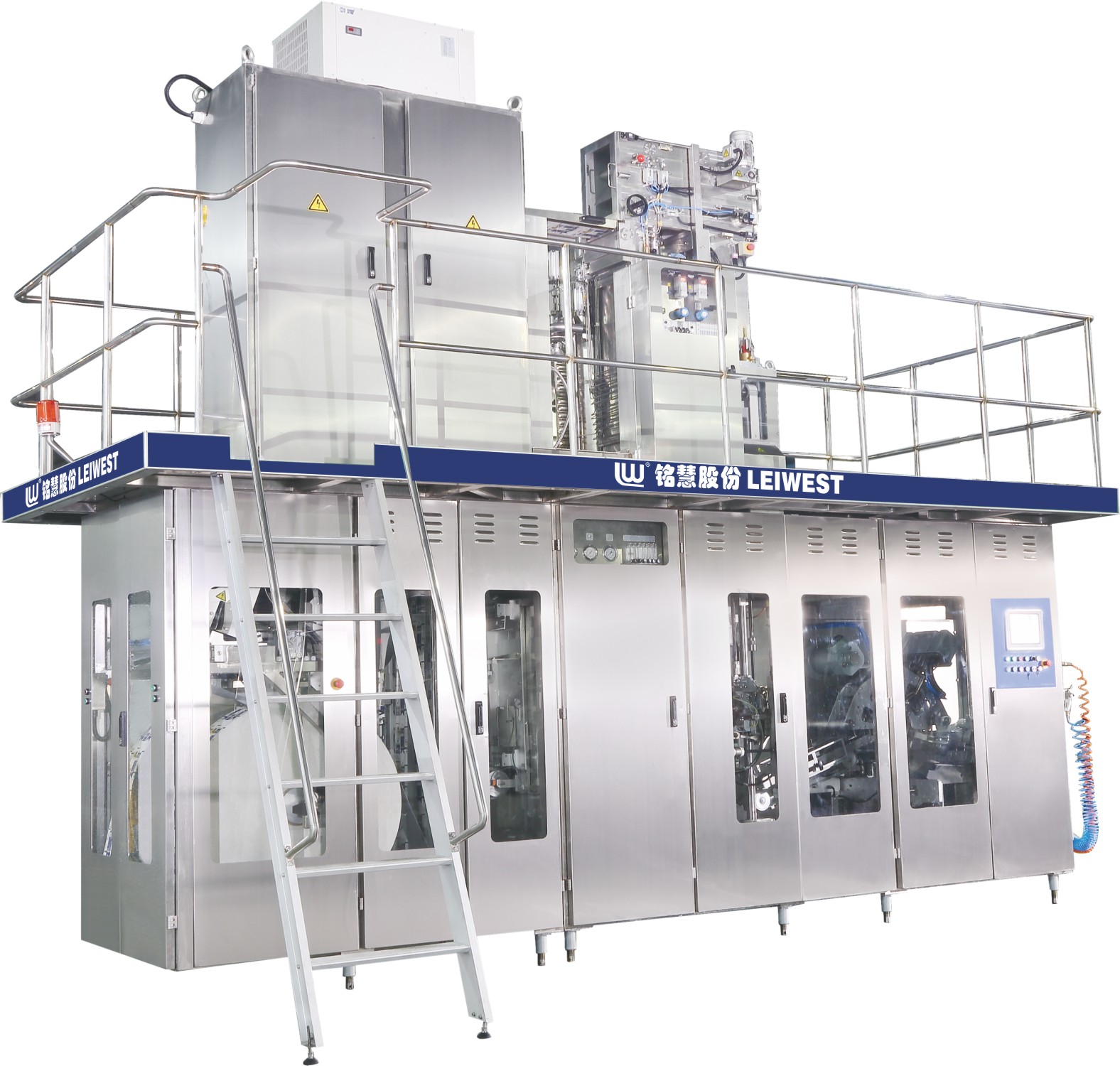

Product Name:LWG6CF Flexible Aseptic Filling Machine







LWG6CF flexible aseptic filling machine adopt flexible design, quick change package type, 30 minutes can replace the same section of different capacity package type.One working day can replace the different section of different capacity package type.



1. Fully servo drive without cam, reduce a large number of spare parts, decrease maintenance costs and maintenance is very easy.

2. Sinking packing material feed mode.

3. LWPAS-2 paper automatic splicer.

4. LWSAS-2 PPP strip automatic splicer.





According to the final product:

LWG6CF :(<330ml) filling machine is used for milk, juice, beverage, etc.



According to the shapes of packing

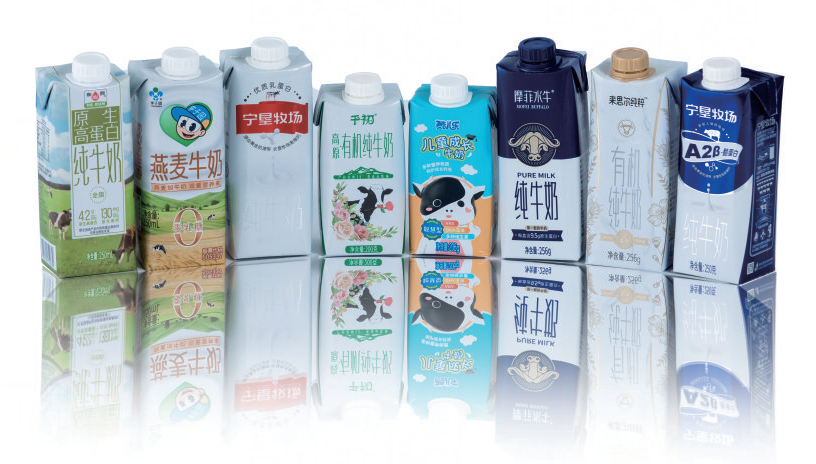

100ml-330ml of various types of packages: including 200SQ.250SQ300SQ330SQ, etc.





Technical Specification

Product Capacity:                           9000 packs/hour

Dimension:                                     5690 mm(L)x2895 mm(W)x4670 mm(H)

Weight:                                          9000kg

Power Supply:                                380VAC/50Hz

Power:                                           60Kw

Compressed Air Pressure:               0.6~1.0Mpa

Water Pressure:                             0.45Mpa

Steam Pressure:                            170±30kpa(1.7±0.3bar)
