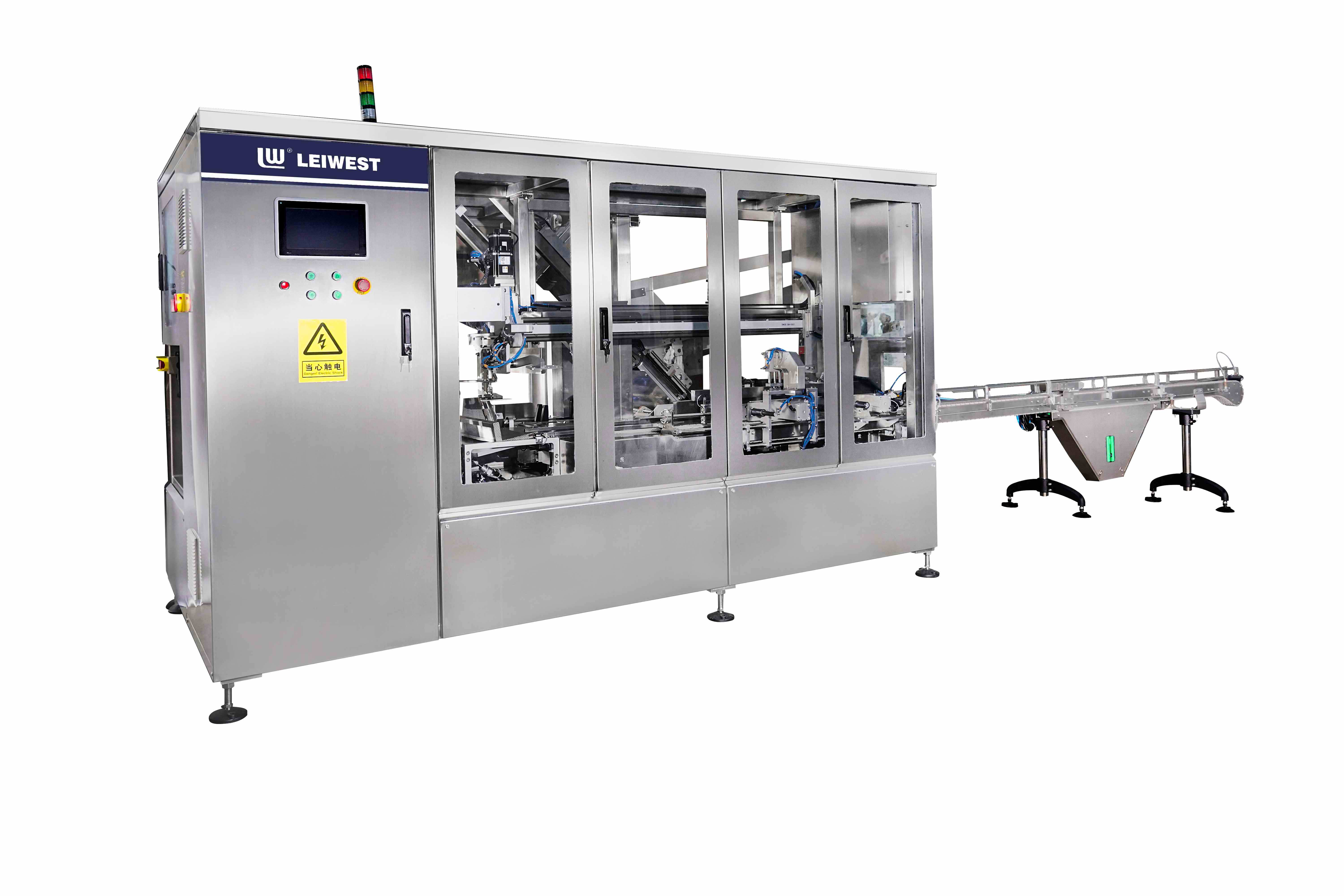

LWP-3 Series Auto-packing Machine is a patent product of Guangzhou Leiwest Pak Co., Ltd. Depends on the effective and stable process from auto-ranking of packs to auto-molding and sealing of boxes, the packing machines can work automatically. A revolutionary function, automatically insert cystosepiments has been achieved.

LWP-3 Series Auto-packing Machine adopts template design, 36Packs (125S only), 27Packs, 24Packs, 21Packs, 20Packs, 16Packs and 12Packs packing frames can be switched rapidly up to customers' demand. Packing Tape and hot melt are selectable as the packing type of the machine.

LWP-3 Series Auto-packing Machine adopts an innovative design, servo-positioning system, achieves the accurate positioning of packing and cystosepiments. The feature of high speed, high precision and high stabilization can reduce huge human resource cost and maintenance cost. The machines have been adopted by many well-known enterprises.

Technical Specification:

Normal Speed：               900（Boxes/hr）

Suitable Packing：          Tetra Bricks，Combibloc Packs，IP Pack,etc.

Dimension：                   6500mm(L)×6000mm(W)×1880mm(H)

Power supply：               380V AC/50Hz

Power：                          12Kw（Packing Tape）；15Kw（Hot melt）

Air Pressure：                  0.7MPa（7bar）

Inbox Quantities：             27Packs/box、24Packs/box、21Packs/box、20Packs/box、16Packs/box、12Packs/box、36Packs/box（For 125ml slim only）
