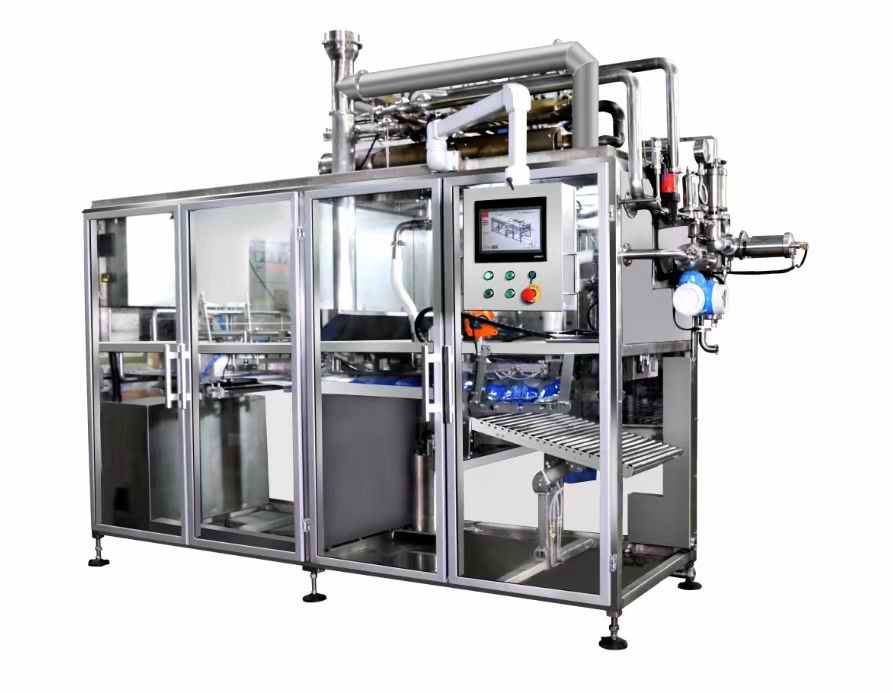

Bag in box aseptic filling machine is a high productivity, easy to use, compact filling equipment, suitable for all kinds of cover aseptic bags, such as ITW and Hoffer. It can used in food, medical, chemical and other industries to fill with milk, juice, carbonated drinks, chemicals and so on.

Explanation: The production capacity of machine depends on the efficiency of the operator and the speed of the product delivery. The maximum speed is 4~5 bags per 20L bag (4~5 bags 5 gallons of bags, 8~10 bags of 2.5 gallons of bags). Modular design，it will more easier and faster to make switching between different lid or package capacity. When replacing the different covers, only need to replace the corresponding clamping dies.

Technical Specification：

Product Capacity：                    4～5 bag/min

Dimension：                             1005mm（L）x1315mm（W）x1795mm（H）

Power Supply：                         220VAC,50Hz

Power：                                    Max<150w

Compressed Air Pressure：        6～8bar

Air Consumption:                        70 NL/min

Capacity deviation:                      ±0.3%
